(주)에스제이정밀의 마그넷 사업부를 안내합니다.

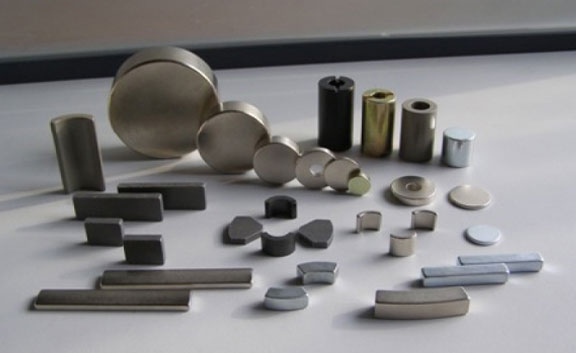

This special SmCo Magnets mainly apply to magnetic suspension bearings, precision sensor, special motors, instruments and microwave electron tube, etc.
| Grade | Br T (kGs) | Hcb KA/m (kOe) | Hcj KA/m (kOe) | Bhmax KJ/m3 (MGOe) |
|---|---|---|---|---|
| XG 22/25 | 0.97±0.03(9.7) | 752±32(9.4) | ≥2000(≥25) | ≥176(≥22) |
| 22/30 | ≥2240(≥28) | |||
| 22/35 | ≥2560(≥32) | |||
| XG 24/25 | 1.03±0.03(10.3) | 768±32(9.6) | ≥2000(≥25) | ≥192(≥24) |
| 24/30 | ≥2240(≥28) | |||
| 24/35 | ≥2560(≥32) | |||
| XG 26/10 | 1.06±0.03(10.60) | 640±40(8) | ≥800(≥10) | ≥200(≥25) |
| 26/16 | ≥1120(≥14) | |||
| 26/20 | ≥1440(≥18) | |||
| 26/25 | 1.08±0.03(10.8) | 784±40(9.8) | ≥1760(≥22) | |
| 26/30 | ≥2080(≥26) | |||
| 26/35 | ≥2560(≥32) | |||
| XG 28/16 | 1.10±0.03(11) | 800±48(10) | ≥1040(≥13) | ≥216(≥27) |
| 28/20 | ≥1360(≥17) | |||
| 28/25 | ≥1760(≥22) | |||
| 28/30 | ≥2080(≥26) | |||
| 28/35 | ≥2560(≥32) | |||
| XG 30/12 | 1.13±0.03(11.3) | 760±48(9.5) | ≥800(≥10) | ≥232(≥29) |
| 30/15 | ≥1040(≥13) | |||
| 30/18 | ≥1280(≥16) | |||
| 30/20 | ≥1440(≥18) | |||
| XG 32/12 | 1.15±0.03(11.5) | 760±48(9.5) | ≥800(≥10) | ≥248(≥31) |
| 32/15 | ≥1040(≥13) | |||
| 32/18 | ≥1200(≥15) |
| Grade | Br T (kGs) | Hcb KA/m (kOe) | Hcj KA/m (kOe) | Bhmax KJ/m3 (MGOe) |
|---|---|---|---|---|
| XG 18/18 | 0.86±0.03(8.6) | 664±24(8.3) | ≥1360 (≥17) | ≥136(≥17) |
| 18/20 | ≥1520(≥19) | |||
| 18/25 | ≥2000(≥25) | |||
| XG 20/18 | 0.90±0.03(9.0) | 688±24(8.6) | ≥1360 (≥17) | ≥152(≥19) |
| 20/20 | ≥1520(≥19) | |||
| 20/25 | ≥2000(≥25) | |||
| XG 22/15 | 0.95±0.03(9.5) | 720±32(9.0) | ≥1120(≥14) | ≥168(≥21) |
| 22/18 | ≥1280(≥16) | |||
| 22/20 | ≥1520(≥19) | |||
| XG 24/15 | 1.00±0.03(10) | 760±32(9.5) | ≥1040(≥13) | ≥184(≥23) |
| 24/18 | ≥1200(≥15) |
